Coconut shell activated carbon, made from coconut husk, is a vapor-activated material. As this carbon contains no chemical agent, when utilized on a medium, it won’t contaminate or respond with it. It’s anything but an absolutely normal and harmless to the ecosystem item, that has a little carbon impression and can efficiently absorb impurities with micro-pore molecular structure, for example, those present in drinking water. Coconut shell activated carbon, owing to its high abrasion resistance and unique physical and chemical characteristics, can safely support applications such as the recovery of gold and other precious metals.
We are one of the leading manufacturers of Coconut Shell Activated Carbon in India having a manufacturing capacity of 27.3 metric tons per day resulting in 10,000 Metric Tons per Year. Coconut Shell Activated Carbon are useful in the application of purification and treatment of water, gas, air, gold and many more products through adsorption.
- Kalbon GAQ Series
- Kalbon PET Series
- Kalbon GAU Series
- Kalbon GVP Series
- Kalbon GMX Series
- Kalbon GFL Series
- Kalbon GCF Series
- Kalbon GSP Series
Kalbon GAQ Series
- 8 X 16
- 8 x 20
- 8 x 30
- 12 x 30
- 12 x 40
- 18 x 40
| Coconut Shell Activated Carbon Specification | KALBON GAQ 8 x 16 |
Method | ||||
|---|---|---|---|---|---|---|
| +8 Mesh (+2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -16 Mesh (-1.18 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 510 | 490 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GAQ 8 x 20 |
Method | ||||
|---|---|---|---|---|---|---|
| +8 Mesh (+2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -20 Mesh (-0.850 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 510 | 490 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GAQ 8 x 30 |
Method | ||||
|---|---|---|---|---|---|---|
| +8 Mesh (+2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -30 Mesh (-0.600 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 500 | 440 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GAQ 12 x 30 |
Method | ||||
|---|---|---|---|---|---|---|
| +12 Mesh (+1.7 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| -30 Mesh (-0.600 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 500 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GAQ 12 x 40 | Method | ||||
|---|---|---|---|---|---|---|
| +12 Mesh (+1.70 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| -40 Mesh (-0.425 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 500 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | Kalbon GAQ 18 x 40 | Method | ||||
|---|---|---|---|---|---|---|
| +18 Mesh (+1.00 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -40 Mesh (-0.425 mm) | 1% Max. | 1% Max. | 1% Max. | 1% Max. | 1% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 550 | 540 | 530 | 500 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 98% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 5% Max. | 5% Max. | 4% Max. | 4% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 1% Max. | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
Kalbon PET Series
- 6 X 16
- 8 X 16
- 8 x 20
- 8 x 30
- 12 x 30
- 12 x 40
- 18 x 40
| Coconut Shell Activated Carbon Specification | KALBON PET 6 x 16 |
Method | ||||
|---|---|---|---|---|---|---|
| +6 Mesh (+3.35 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -16 Mesh (-1.18 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 520 | 520 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON PET 8 x 16 |
Method | ||||
|---|---|---|---|---|---|---|
| +8 Mesh (+2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -16 Mesh (-1.18 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 510 | 490 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON PET 8 x 20 |
Method | ||||
|---|---|---|---|---|---|---|
| +8 Mesh (+2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -20 Mesh (-0.850 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 510 | 490 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON PET 8 x 30 |
Method | ||||
|---|---|---|---|---|---|---|
| +8 Mesh (+2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -30 Mesh (-0.600 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 500 | 440 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON PET 12 x 30 |
Method | ||||
|---|---|---|---|---|---|---|
| +12 Mesh (+1.7 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| -30 Mesh (-0.600 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 500 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON PET 12 x 40 | Method | ||||
|---|---|---|---|---|---|---|
| +12 Mesh (+1.70 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| -40 Mesh (-0.425 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 500 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | Kalbon PET 18 x 40 | Method | ||||
|---|---|---|---|---|---|---|
| +18 Mesh (+1.00 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -40 Mesh (-0.425 mm) | 1% Max. | 1% Max. | 1% Max. | 1% Max. | 1% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 550 | 540 | 530 | 500 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 98% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 5% Max. | 5% Max. | 4% Max. | 4% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 1% Max. | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
Kalbon GAU Series
- 6 X 12
- 8 x 16
| Coconut Shell Activated Carbon Specification | KALBON GAU 6 x 12 |
Method | ||||
|---|---|---|---|---|---|---|
| +6 Mesh (+3.35 mm) | 3% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -12 Mesh (-1.70 mm) | 2% Max. | 2% Max. | 2% Max. | 2% Max. | 2% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 530 | 520 | 500 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 98% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GAU 8 x 16 |
Method | ||||
|---|---|---|---|---|---|---|
| +8 Mesh (+2.36 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| -16 Mesh (-1.18 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 520 | 500 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 98% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
Kalbon GVP Series
- 3 X 6
- 4 x 8
- 6 x 16
| Coconut Shell Activated Carbon Specification | KALBON GVP 3 x 6 |
Method | ||||
|---|---|---|---|---|---|---|
| +3 Mesh (+6.73 mm) | 5% Max. | 5% Max. | ASTM D2862 | |||
| -6 Mesh (-3.35 mm) | 5% Max. | 5% Max. | ASTM D2862 | |||
| Iodine Value (Minimum) | 900 | 950 | ASTM D4607 | |||
| CTC Value in % (Minimum) | 45 | 50 | ASTM D3467 | |||
| Apparent Density in Kg/m3 (Minim.) | 500 | 450 | ASTM D2854 | |||
| Surface Area | NA | NA | ||||
| Ball Pan Hardness | 95% Min. | 95% Min. | ASTM D3802 | |||
| Moisture | 5% Max. | 5% Max. | ASTM D2867 | |||
| Ash | 3% Max. | 3% Max. | ASTM D2866 | |||
| PH | 9 – 11 | 9 – 11 | ASTM D3838 | |||

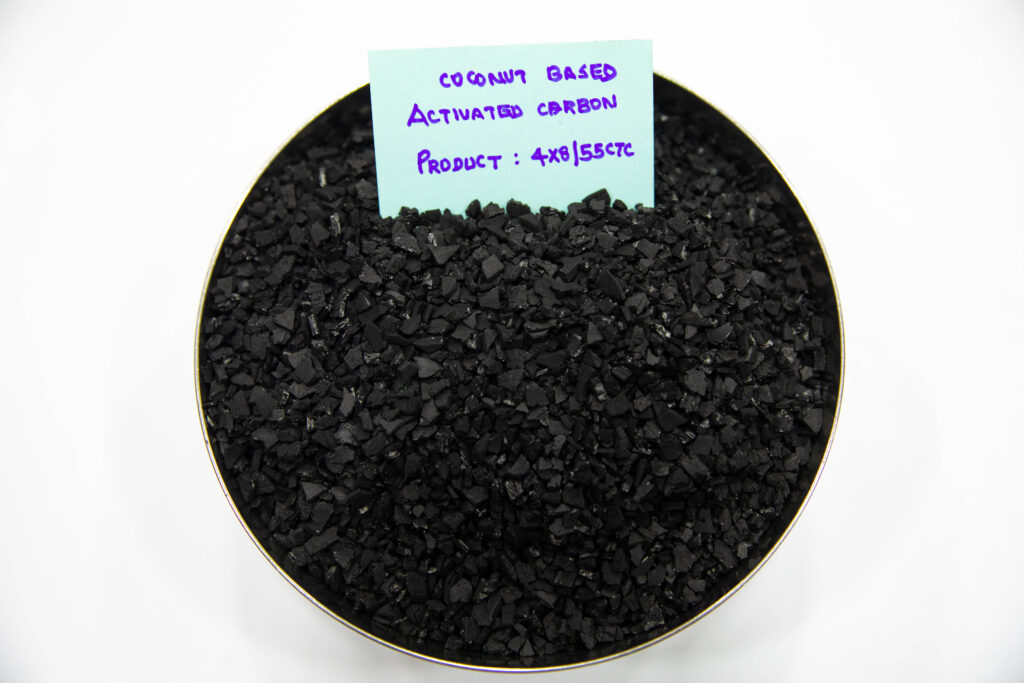

| Coconut Shell Activated Carbon Specification | KALBON GVP 4 x 8 |
Method | ||||
|---|---|---|---|---|---|---|
| +4 Mesh (+4.75 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -8 Mesh (-2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 900 Min. | 950 Min. | 1050 Min. | 1100 Min. | 1250 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 510 | 490 | 480 | 460 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GVP 6 x 16 |
Method | ||||
|---|---|---|---|---|---|---|
| +6 Mesh (+3.35 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -16 Mesh (-1.18 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 520 | 520 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
Kalbon GMX Series
- 10 X 20
- 10 x 30
| Coconut Shell Activated Carbon Specification | KALBON GMX 10 x 20 |
Method | ||||
|---|---|---|---|---|---|---|
| +10 Mesh (+2.00 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -20 Mesh (-0.850 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 520 | 500 | 480 | 440 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 4% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GMX 10 x 30 |
Method | ||||
|---|---|---|---|---|---|---|
| +10 Mesh (+2.00 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -30 Mesh (-0.600 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 520 | 500 | 480 | 440 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
Kalbon GFL Series
- 20 x 50
- 20 x 60
- 20 x 70
| Coconut Shell Activated Carbon Specification | KALBON GFL: 20 x 50 |
Method | ||||
|---|---|---|---|---|---|---|
| +20 Mesh (+841 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -50 Mesh (-297 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 480 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GFL: 20 x 60 |
Method | ||||
|---|---|---|---|---|---|---|
| +20 Mesh (+841 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -60 Mesh (-250 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 480 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GFL: 20 x 70 |
Method | ||||
|---|---|---|---|---|---|---|
| +20 Mesh (+841 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -70 Mesh (-210 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 480 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
Kalbon GCF Series
- 35 X 60
- 35 x 70
- 35 X 80
| Coconut shell activated carbon Specification | KALBON GCF: 30 x 60 |
Method | ||||
|---|---|---|---|---|---|---|
| +30 Mesh (+595 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -60 Mesh (-250 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 520 | 500 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut shell activated carbon Specification | KALBON GCF: 35 x 70 |
Method | ||||
|---|---|---|---|---|---|---|
| +35 Mesh (+500 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -70 Mesh (-210 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 520 | 500 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut shell activated carbon Specification | KALBON GCF: 35 x 80 |
Method | ||||
|---|---|---|---|---|---|---|
| +35 Mesh (+500 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -80 Mesh (-177 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 520 | 500 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
Kalbon GSP Series
- 50 x 250
- 60 x 120
- 60 x 140
- 80 x 325
- 100 x 325
| Coconut Shell Activated Carbon Specification | KALBON GSP: 50 x 250 |
Method | ||||
|---|---|---|---|---|---|---|
| +50 Mesh (+297 micron) | 25% Max. | 25% Max. | 25% Max. | 25% Max. | 25% Max. | ASTM D2862 |
| -250 Mesh (-55 micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 480 | 460 | 430 | 410 | 380 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | NA | NA | NA | NA | NA | ASTM D3802 |
| Moisture | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GSP: 60 x 120 |
Method | ||||
|---|---|---|---|---|---|---|
| +60 Mesh (+250 micron) | 25% Max. | 25% Max. | 25% Max. | 25% Max. | 25% Max. | ASTM D2862 |
| -120 Mesh (-125 micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 480 | 460 | 430 | 410 | 380 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | NA | NA | NA | NA | NA | ASTM D3802 |
| Moisture | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GSP: 60 x 140 |
Method | ||||
|---|---|---|---|---|---|---|
| +60 Mesh (+250 micron) | 25% Max. | 25% Max. | 25% Max. | 25% Max. | 25% Max. | ASTM D2862 |
| -140 Mesh (-105 micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 480 | 460 | 430 | 410 | 380 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | NA | NA | NA | NA | NA | ASTM D3802 |
| Moisture | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GSP: 80 x 325 |
Method | ||||
|---|---|---|---|---|---|---|
| +80 Mesh (+177 micron) | 25% Max. | 25% Max. | 25% Max. | 25% Max. | 25% Max. | ASTM D2862 |
| -325 Mesh (-44 micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 480 | 460 | 430 | 410 | 380 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | NA | NA | NA | NA | NA | ASTM D3802 |
| Moisture | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon Specification | KALBON GSP: 100 x 325 |
Method | ||||
|---|---|---|---|---|---|---|
| +100 Mesh (+149 micron) | 25% Max. | 25% Max. | 25% Max. | 25% Max. | 25% Max. | ASTM D2862 |
| -325 Mesh (-44 micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 480 | 460 | 430 | 410 | 380 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | NA | NA | NA | NA | NA | ASTM D3802 |
| Moisture | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 7% Max. | 7% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2866 |
| PH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
